GRAFMETAL silver based conductive adhesive allows you to repair or create conductive paths. Single container has a weight of 2 g of adhesive (0.72 ml). Main applications of the product:
Repair of rear window heating
Repair of conductive paths
Repair of PCB boards
Manual:
Clean thoroughly the place to which the product will be applied
Mix the adhesive in the container
Apply the adhesive to the desired place in a form of a very thin layer and wait for it to dry. Apply another layer after drying if necessary.
Additional tips:
Using the masking tape before applying may be helpful
If the adhesive is applied to vertical surfaces, it is recommended to apply several thinner layers to avoid dripping
If the applied layer does not have sufficient conductivity, it is recommended to thicken it
Yield: up to 40 cm of 3 mm wide path, layer thickness after drying 0.2 mm.

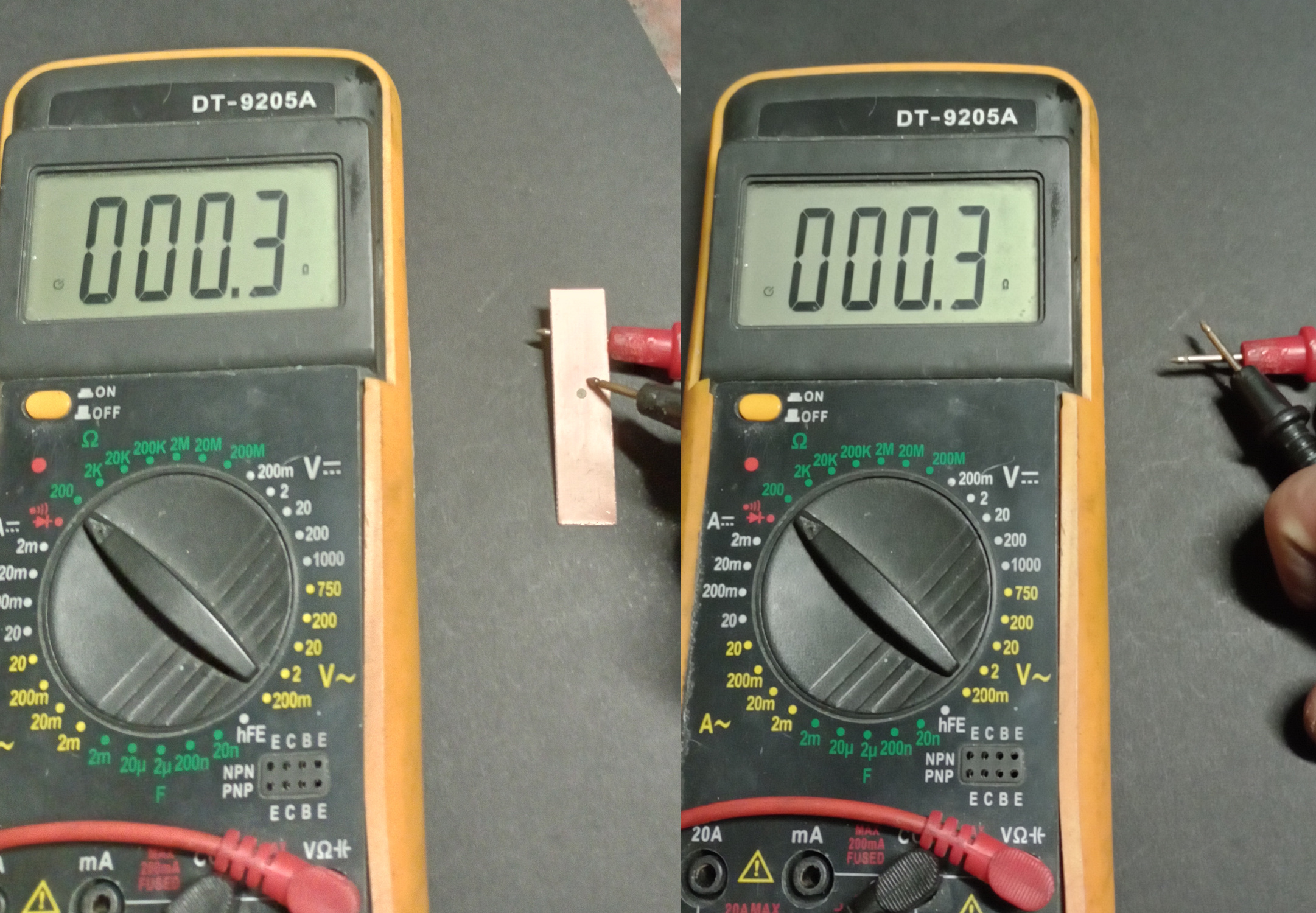

Resistivity determined experimentally:
11 μΩ⋅m (20°C), 5,6 μΩ⋅m (90°C)
Maximum use temperature: 70°C (158°F) continuous, 90°C (194°F) short term.
For the preparation of the product, slow-drying solvents are used so that the product does not dry out in the packaging. We are the manufacturer, we have the ability to customize the preparation.
